One Measurement Platform for Every Lift Method.
Pressure rating
8000 psi (55 MPa)
Intake temperature range
32 - 302°F (0 - 150°C)
Tubing temperature range
32 - 482°F (0 - 250°C)
Annulus pressure range
0 - 5800 psi (0 - 40 MPa)

Discover the engineering advantages that set the TM02 apart - and keep your operations running at peak performance.

The system is engineered to support SRP, PCP, and Gas Lift technologies effectively, rather than being limited to a single extraction method.
It measures liquid levels with an accuracy of ±1%, which is critical for preventing dry running in pumps.
The sensor monitors vibration across the X, Y, and Z axes (up to 50 m/s²), allowing for the detection of abnormal vibrations caused by solids or mechanical stress.
The surface unit features a Wi-Fi interface that enables remote access from mobile devices without requiring external network coverage.
The surface card is designed with minimal dimensions (150x120x70 mm) for space efficiency and includes a built-in LCD for parameter reading and graph plotting.

The system supports tubing temperature monitoring up to 482°F (250°C), making it suitable for high-temperature downhole environments.

The sensor data facilitates adaptive motor speed control, reducing overheating risks by 30% and optimizing energy consumption.

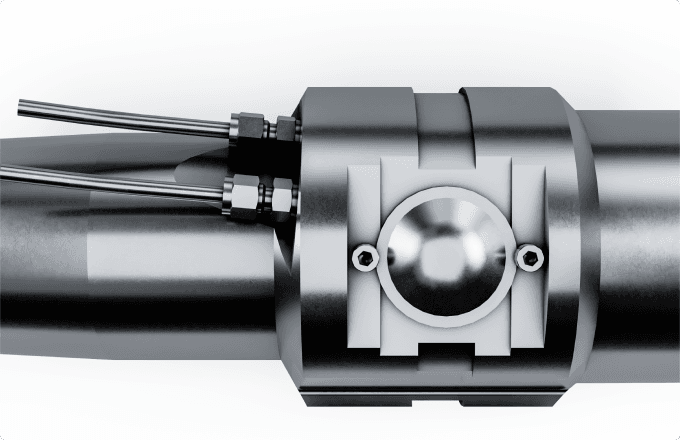

Look inside the TM02 to see how smart design becomes real-world performance, efficiency, and uptime.

Liquid level accuracy
±1%
Vibration measurement range (X, Y, Z axis)
5.06 G (50 m/s²)
Data update rate
1 Second
Surface unit protection rating
IP20
Surface unit operating temperature
-20 to +85°C (-4 to +185°F)
Event log capacity
30 days
