The right drive for everyday production.
Discover the engineering advantages that set the AK06 RD apart - and keep your operations running at peak performance.
The line is explicitly positioned as a "value-focused" and "cost-effective" solution. It strips away the expensive features required for extreme environments to provide exactly what is needed for typical oilfield production without over-engineering.

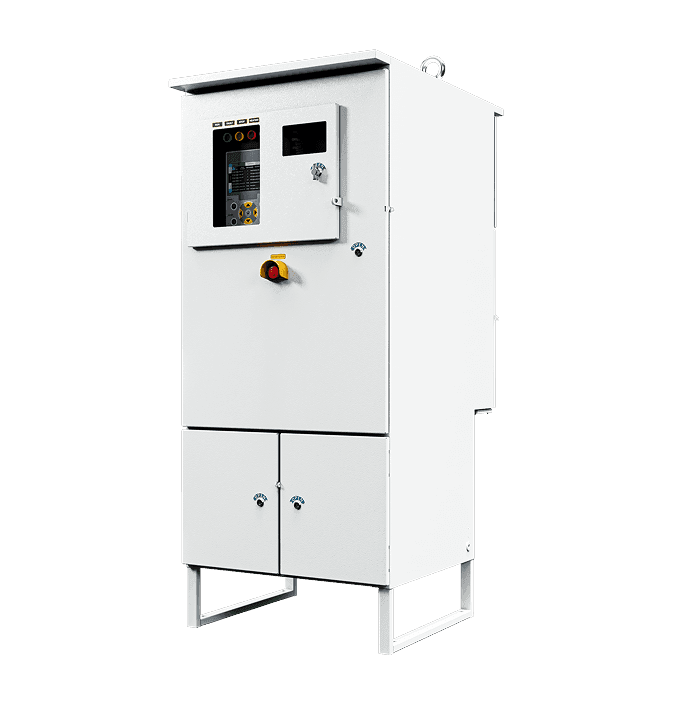

The AK06 RD utilizes a NEMA 3R enclosure. This weather-resistant rating is optimized for standard onshore applications, protecting against rain and ice while allowing for a lighter, more economical cabinet design.
To reduce weight and complexity, the RD line employs forced air cooling rather than the hermetic air-to-air heat exchangers found in the premium lines. This efficient cooling method is perfectly sufficient for the rated operating environment (-20°C to +50°C), simplifying maintenance.
The AK06 RD is rated for continuous operation from -20°C to +50°C (-4°F to +122°F). This covers the vast majority of onshore climatic zones while reducing component costs.
-20°C to +50°C

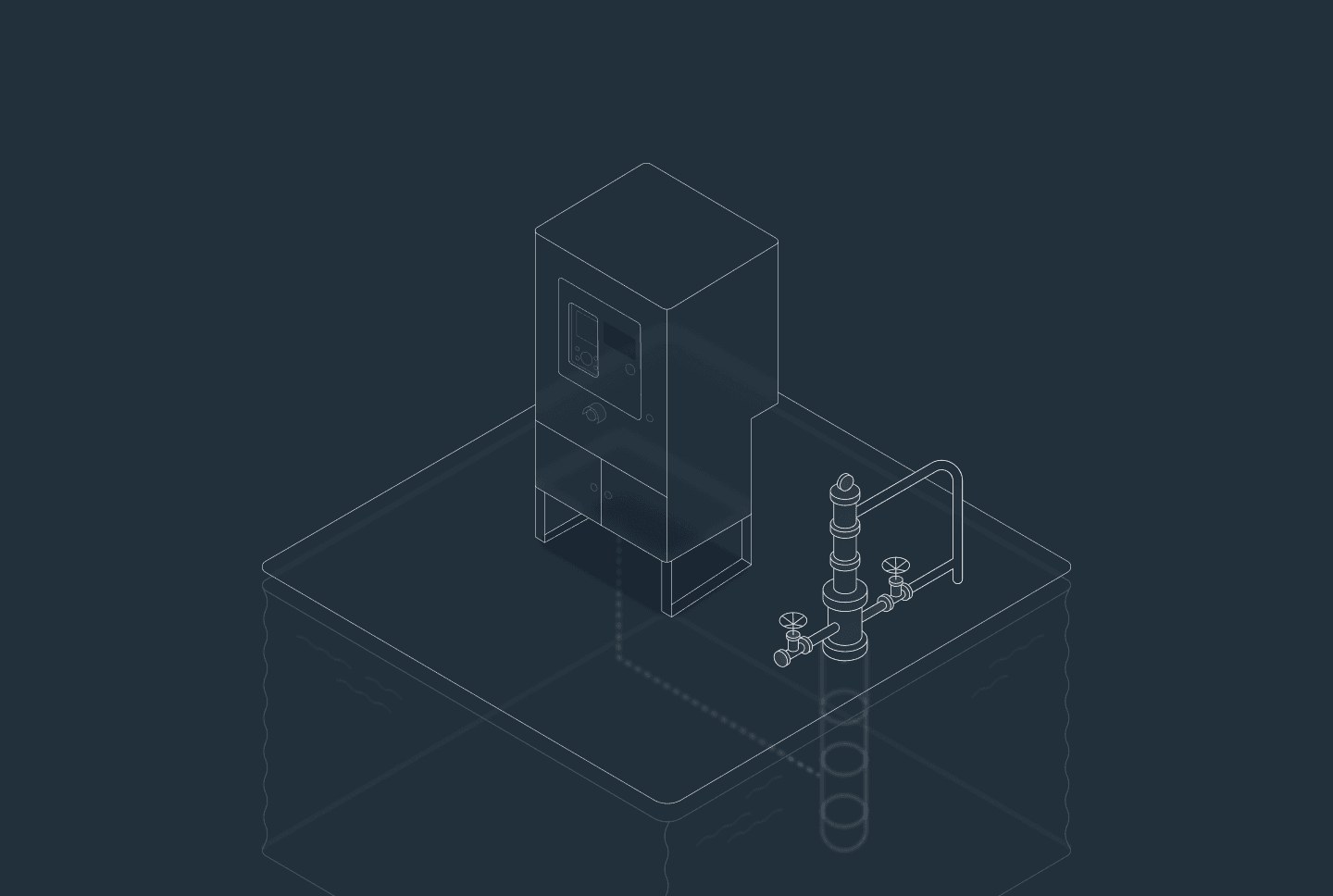

Despite being an "economy" line, it does not sacrifice power capability. The AK06 RD supports rated output currents from 100 A up to 3000 A (in tandem configurations), allowing operators to use this cost-effective drive even for high-flow, high-horsepower ESP installations.
Triol retains the built-in sine wave filter even in this value line. This ensures the output voltage has a Total Harmonic Distortion (THDu) of < 5%, protecting the downhole motor insulation regardless of the drive's price point.
The RD line uses standard 6-pulse or 12-pulse input rectifiers. This straightforward topology eliminates the weight and cost of the passive filters or phase-shifting autotransformers, making it the ideal choice for fields where strict IEEE 519 compliance is not the primary constraint.
Look inside the AK06 RD to see how smart design becomes real-world performance, efficiency, and uptime.
