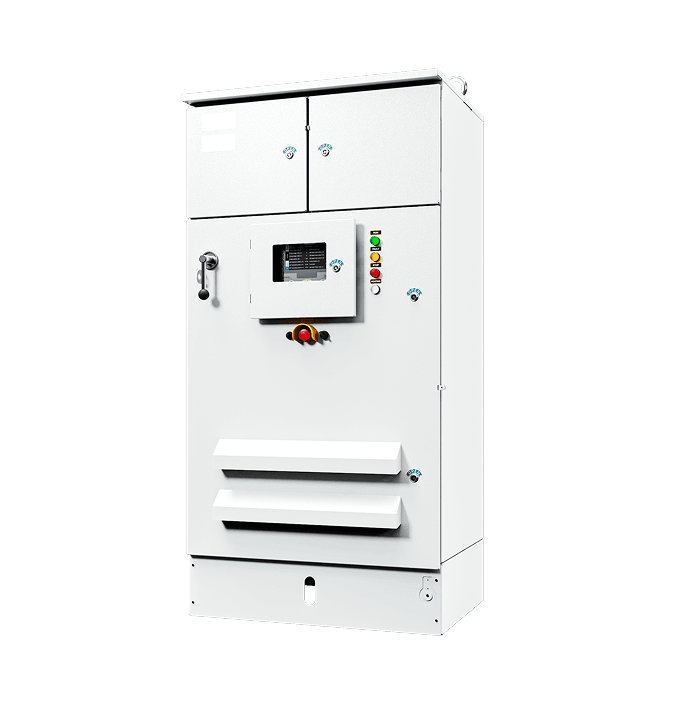

Oil production variable speed drive AK06 ID

The Right Drive for Indoor Reliability.

Output current

100 - 1800 A (Available on tandem drives)

Nominal supply voltage

3 x 380 / 415 / 440 / 480 V (-15%, +10%)

Total harmonic distortion (THDi)

≤ 5% (With standard built-in output sine filter)

Efficiency

Not less than 96%

Key features: AK06 ID

Discover the engineering advantages that set the AK06 ID apart - and keep your operations running at peak performance.

Optimized indoor design

Unlike outdoor models requiring expensive NEMA 4/4X enclosures, the AK06 ID uses a cost-efficient carbon steel enclosure (IP23/IP42) tailored for indoor/shelter use without sacrificing functionality.

P23/IP42

Front-only service access

All components are accessible from the front, allowing the unit to be installed directly against a wall or side-by-side, which saves significant floor space in engine rooms or production areas.

Natural convection cooling

The system utilizes natural convection (air drawn in front, discharged upward), eliminating complex ventilation systems and powered fans, which simplifies operation and improves reliability.

Built-in sine filter

In its standard configuration, the drive includes a sinusoidal filter that ensures Low Harmonic Distortion (THDi < 5%) for both current and voltage, protecting sensitive equipment.

SIL3 safety certification

It features a Safe Torque Off (STO) function certified to SIL3 level, ensuring instant shutdown of PWM pulses and high-level emergency safety.

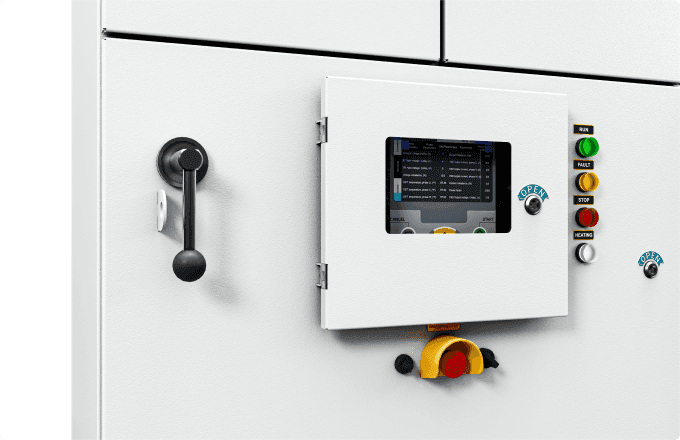

UMKA10 touchscreen controller

The drive is equipped with a 10-inch high-resolution touchscreen controller with built-in Wi-Fi, allowing for cable-free remote configuration and intuitive data visualization.

Unified modular architecture

The power section is built from separate, easily replaceable modules that are fully unified with the AK06 UD series, simplifying logistics and maintenance.

Inside the solution: features that drive your results

Look inside the AK06 ID to see how smart design becomes real-world performance, efficiency, and uptime.

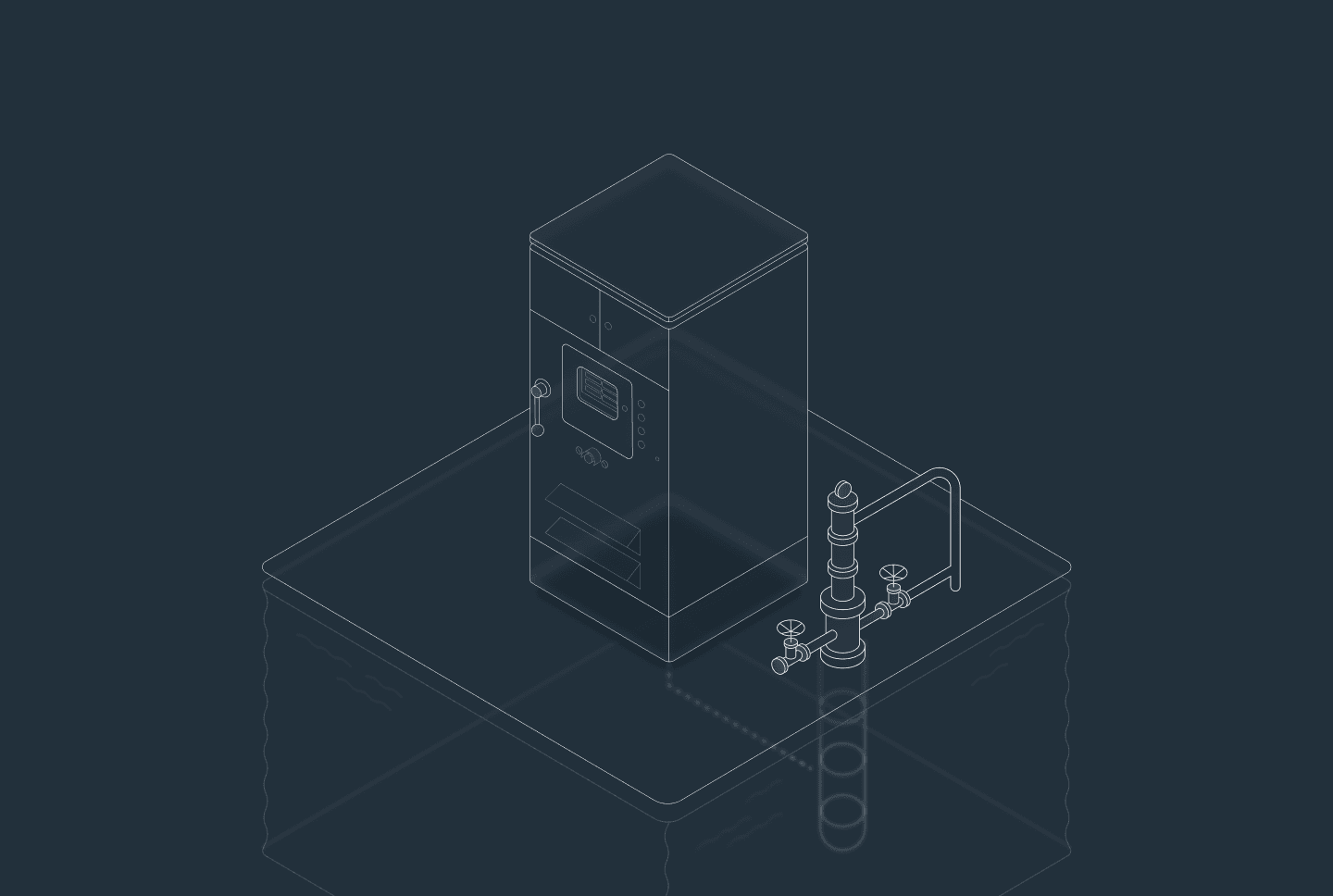

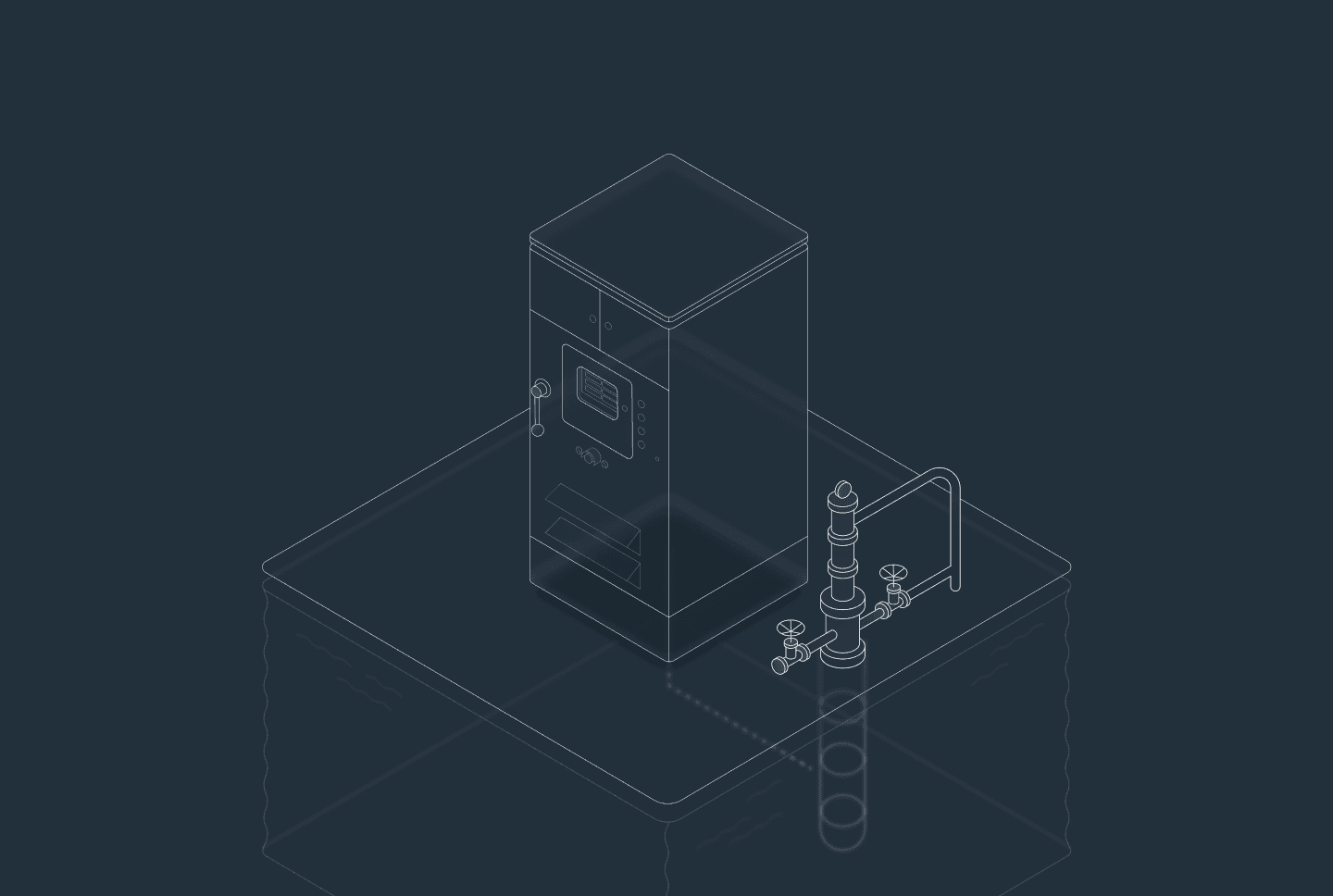

AK06 ID is part of Triol’s Artificial Lift Solutions

Documents

Catalog

PDF

ZIP

Characteristics

Output frequency range

1.5 … 90 Hz (Induction Motors); 4 … 200 Hz (Permanent Magnet Motors)

Overcurrent capacity

Up to 120% of rated value during 60 seconds

Protection level

IP23 (Standard) or IP42 (Optional)

PWM frequency

4 kHz (Ensures precise control and low noise)

Ambient operating temperature

-20°C … +40°C

Certifications

UL (cULus), CE
