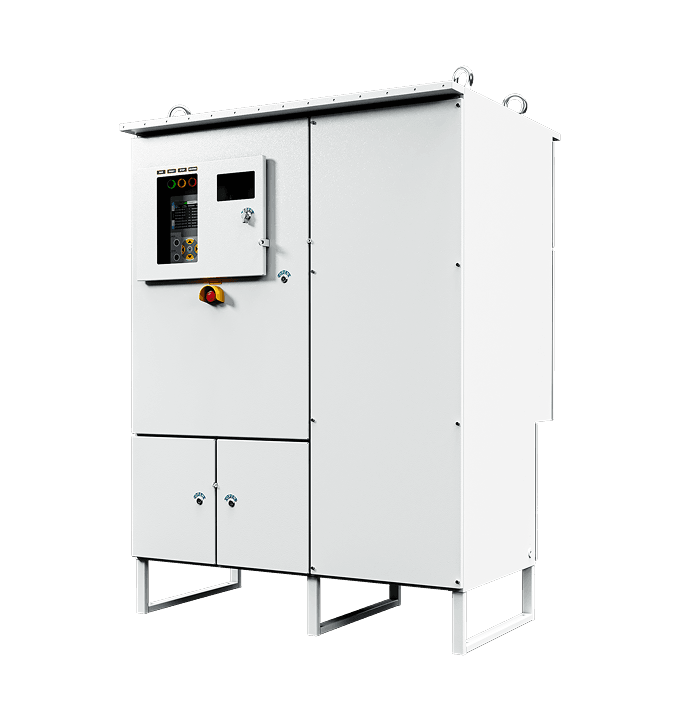

Low harmonics without the heavy armor.
Total harmonic distortion (THDi)
≤ 5%
Enclosure
NEMA 3R (Carbon Steel
Rated output current
100 A - 2000 A
Supply voltage
380 V / 480 V
Discover the engineering advantages that set the AK06 LH apart - and keep your operations running at peak performance.

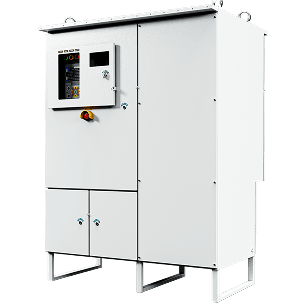

The unit combines the VSD and a specially designed rejection filter (inductors and capacitors) in a single cabinet, ensuring THDi ≤ 5% without external modules.
THDi ≤ 5%
Unlike the premium "Clean Power" (CP) line which uses NEMA 4X, the LH uses a NEMA 3R cabinet. This provides certified protection against rain and ice for outdoor installation but utilizes forced air cooling to reduce weight and cost.

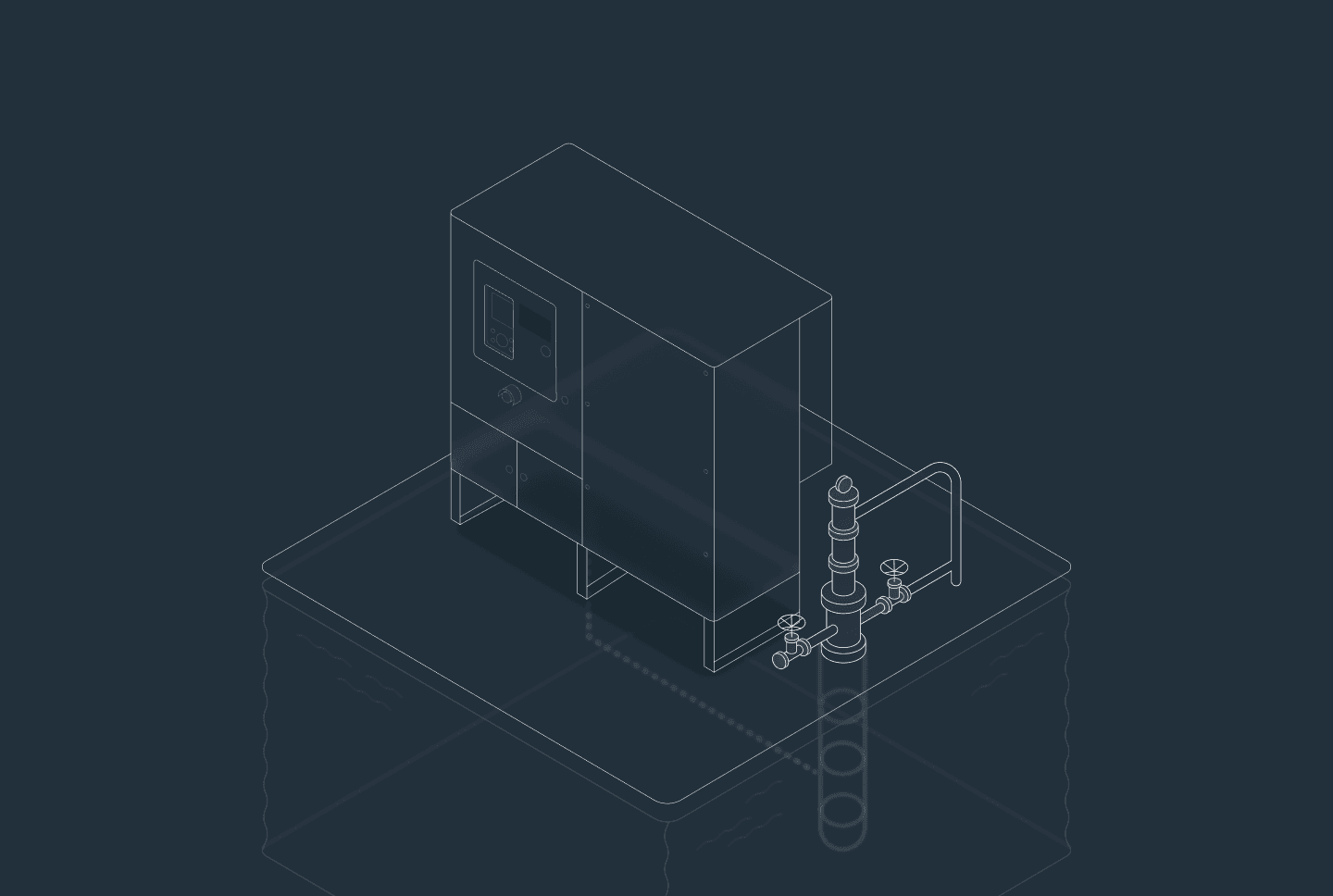

By integrating the filter into the drive cabinet, the LH line reduces the footprint compared to installing a separate drive and a separate filter cabinet, saving space on the pad and reducing shipping costs.
The passive filter is engineered to operate efficiently at load levels from 70% to 100%, with the flexibility to maintain performance down to 50% load, ensuring compliance even when the pump is not running at full capacity.
It operates reliably in diverse climates. While not rated for the extreme +60°C of the CP line, the +50°C limit covers the vast majority of onshore oilfields.
(-20°C to +50°C)
The VSD achieves 96% efficiency, and the integrated passive filter operates at 98% efficiency, ensuring that the harmonic mitigation process does not generate excessive heat or energy loss.
Despite being a value-line product, it retains the advanced algorithms to control Induction Motors and Permanent Magnet Motors (PMM), including high-speed variants.

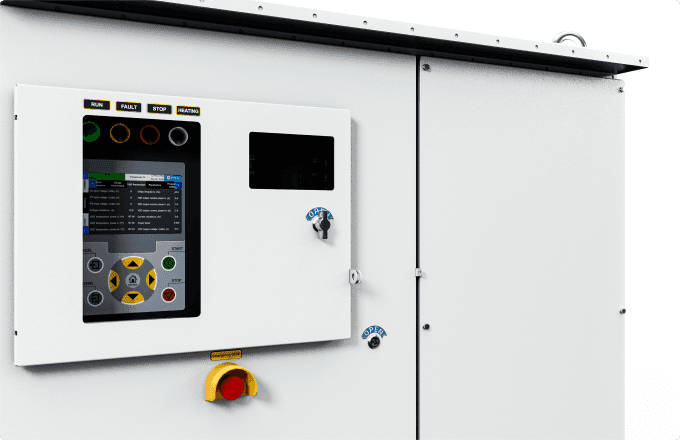

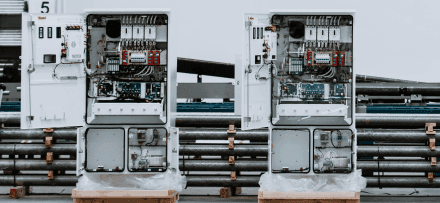

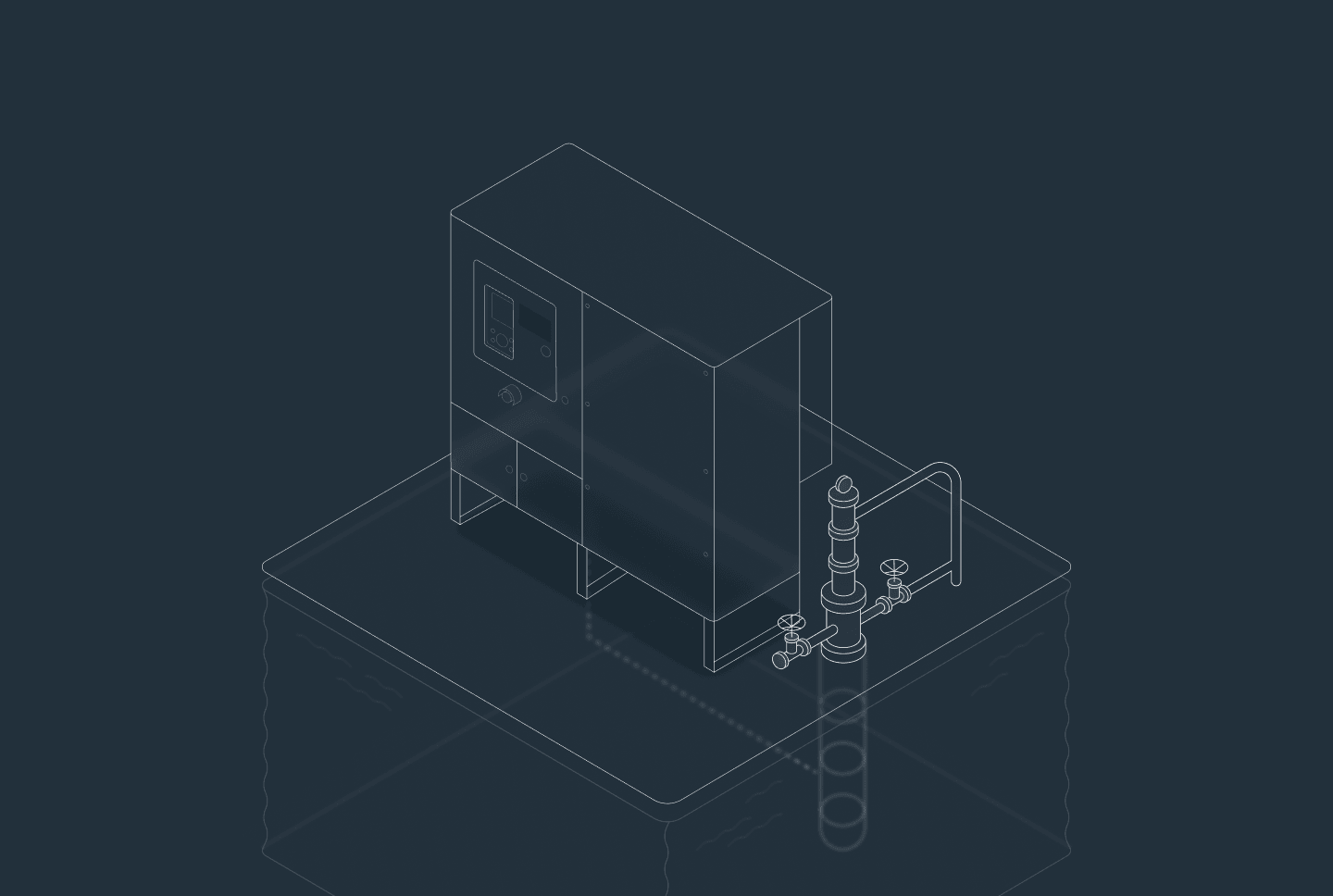

Look inside the AK06 LH to see how smart design becomes real-world performance, efficiency, and uptime.
your reality, your challenges, your success.
Submit your request or question, and our team of specialists will contact you.
Our sales team will contact you as soon as possible.
Built through partnership. Proven by engineering. Trusted in the toughest conditions. Full-cycle production. Total reliability. Systems that perform where others fall short.
Meet our team
Meet the team behind innovations that drive industries forward. Engineers, designers, and experts turning challenges into solutions.
Triol’s partners
We collaborate with leading Oil & Gas and industrial companies worldwide to deliver efficient, proven solutions tailored to their unique challenges.
Sustainability
Because real sustainability starts at the design table - not at the marketing one - we engineer systems that conserve, protect, and outperform over time.
Technology
Where others deliver equipment, Triol delivers systems. Modular, intelligent, and field-ready. Built for the complexity of modern industry.

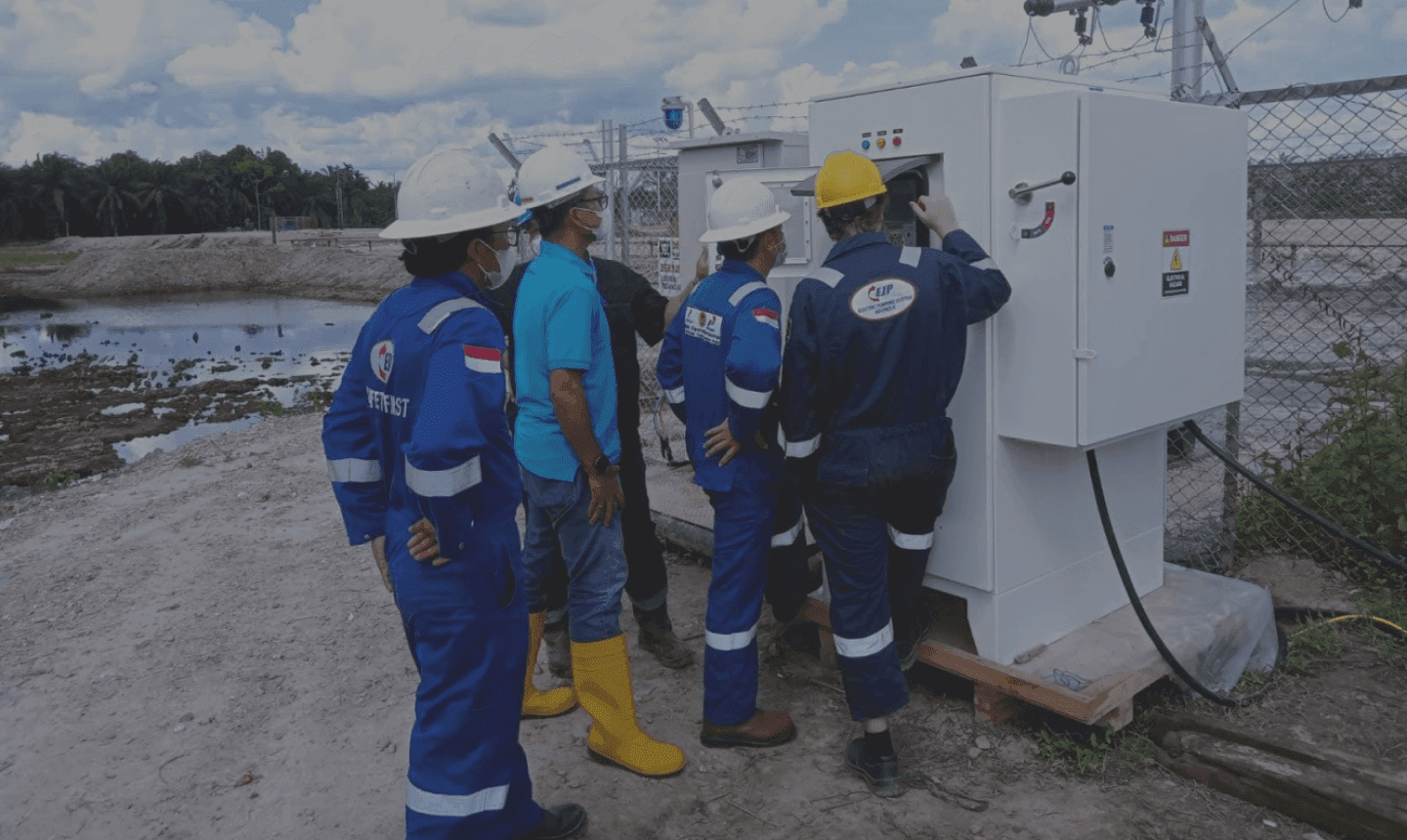

Implementations
Global reach, industrial depth: Triol systems implemented across continents and critical sectors.
Operating temperature
-20°C to +50°C
Efficiency
96% (VSD) / 98% (Filter)
Output frequency
1.5 - 600 Hz (for High-Speed PMM)
Overload capability
120% for 60 sec
Rectifier pulses
6 or 12 pulse (with passive filter)
Cooling type
Forced air
