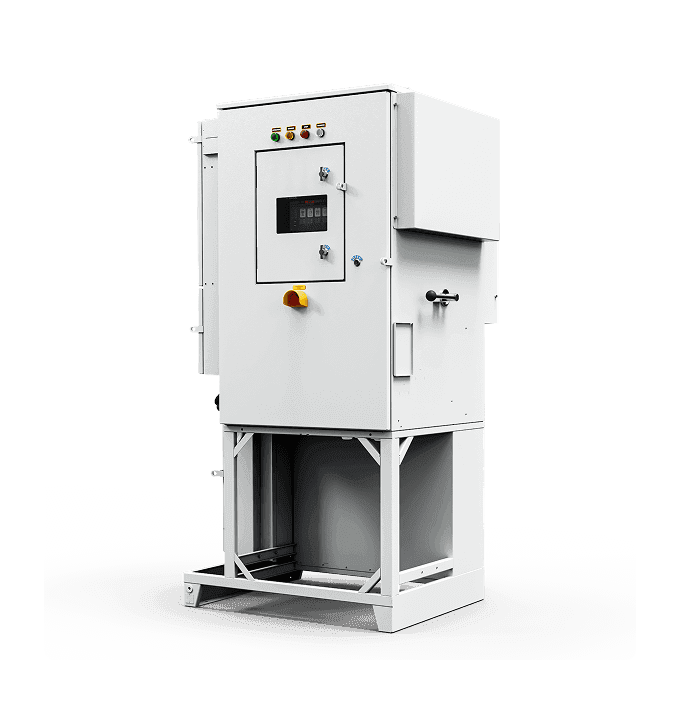

Low voltage drive for progressive cavity pump AT24 RT

Precision control for demanding PCP systems

Input voltage

3x380…480 V (-15%…+10%)

Operating temperature range (with options)

-40 °C…+50 °C (-40°F…+122°F) without power reduction

Output current range

17.5 A ... 370 A

Efficiency

Up to 98%

Key features: AT24 RT

Discover the engineering advantages that set the AT24 RT apart - and keep your operations running at peak performance.

Specialized anti-jamming algorithms

Includes software functions designed specifically for eliminating pump jamming, which increases operational efficiency and reduces failure risks associated with PCP systems.

Sand removal (pump cleaning)

Features specialized algorithms designed for the process of sand removal from the pump (also referred to as pump cleaning).

Paraffinization protection

Provides specific protection against pump paraffinization.

IEEE-519 compliant power quality

The use of an optional Active Rectifier achieves current distortion (THDi) of less than 5%, ensuring compliance with the IEEE-519 standard and allowing for energy recuperation back into the electric network during generator mode.

Rugged enclosure options

Provides robust enclosure protection, with a base rating of IP54/NEMA3R and the option to upgrade to IP66/NEMA4 for installation in harsh, high-dust, or moist environments.

High-quality motor vector control

Offers high-quality vector motor control for precise speed management, achieving trouble-free system operation and maximum protection for the motor and mechanism.

Dynamic flow optimization

Utilizes optimization algorithms to maximize flow rate by controlling and maintaining the fluid flow or pump speed, or pressure based on sensor input or pump filling level.

Inside the solution: features that drive your results

Look inside the AT24 RT to see how smart design becomes real-world performance, efficiency, and uptime.

AT24 RT is part of Triol’s Artificial Lift Solutions

Documents

Catalog

PDF

ZIP

Characteristics

Mains frequency

50/60 Hz (-5%...+5%) with 6-pulse rectifier or active rectifier

Enclosure protection class

IP54/NEMA3R (base); up to IP66/NEMA4 (option)

Rated overload characteristic

120% rated output current during 60 s

Speed control accuracy (static)

Better than 0.1% of the rated speed (in open loop)

Output frequency range (max)

Up to 600 Hz (on request)

Harmonic compliance standard

Compliance with IEEE-519 standard (via Active Rectifier or passive filter)
