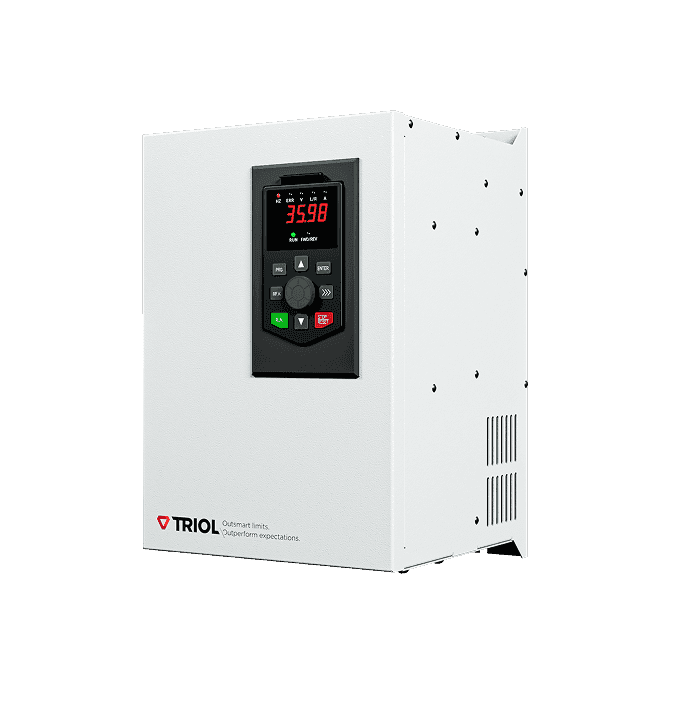

Precision control for high-performance crane applications
Power range
750 W – 500 kW
Supply voltage
380..480 V (-15% to +10%)
Output frequency range
0 – 600 Hz
Enclosure rating
IP55

Discover the engineering advantages that set the AT24 UB CraneSync apart - and keep your operations running at peak performance.
Smooth transitions between braking and operation. The motor is pre-magnetized to generate full torque at zero speed, holding the load securely before the brake releases. Optional torque memory ensures precise control on re-application.
Continuously monitors shaft rotation while the mechanical brake is applied. If a brake failure is detected, the VFD instantly restarts the motor to catch and hold the load, preventing uncontrolled descent.
On encoder failure, the VFD switches instantly from closed-loop to open-loop sensorless vector control without interrupting operation, allowing the cycle to complete safely.
Automatically compensates for load oscillations during travel and speed transitions. By dynamically adjusting the speed reference, the converter cancels pendulum effects and keeps the load stable and precise.
Soft Lift detects load engagement to eliminate peak shock forces during lifting. Slack Rope Prevention senses ground contact and stops lowering instantly, keeping the rope tensioned and seated on the drum.

Look inside the AT24 UB CraneSync to see how smart design becomes real-world performance, efficiency, and uptime.

your reality, your challenges, your success.
Submit your request or question, and our team of specialists will contact you.
Our sales team will contact you as soon as possible.

Built through partnership. Proven by engineering. Trusted in the toughest conditions. Full-cycle production. Total reliability. Systems that perform where others fall short.
Meet our team
Meet the team behind innovations that drive industries forward. Engineers, designers, and experts turning challenges into solutions.
Triol’s partners
We collaborate with leading Oil & Gas and industrial companies worldwide to deliver efficient, proven solutions tailored to their unique challenges.
Sustainability
Because real sustainability starts at the design table - not at the marketing one - we engineer systems that conserve, protect, and outperform over time.
Technology
Where others deliver equipment, Triol delivers systems. Modular, intelligent, and field-ready. Built for the complexity of modern industry.
Implementations
Global reach, industrial depth: Triol systems implemented across continents and critical sectors.
EMC
Category C3 per IEC/EN 61800-3
Motor control
Open/Closed loop vector control; Scalar V/f control (5 points)
Operating temperature
–10 °C … +40 °C without derating; up to +50 °C with derating
Standard I/O
5 digital inputs, 1 digital output, 2 relay outputs, 2 analog inputs, 1 analog output
Embedded communication
RS-485 (Modbus-RTU); Wi-Fi via built-in web interface
Optional extension units
Up to 2 — additional I/O, RS-485 / Ethernet, encoder feedback (incremental / absolute / sin-cos)
