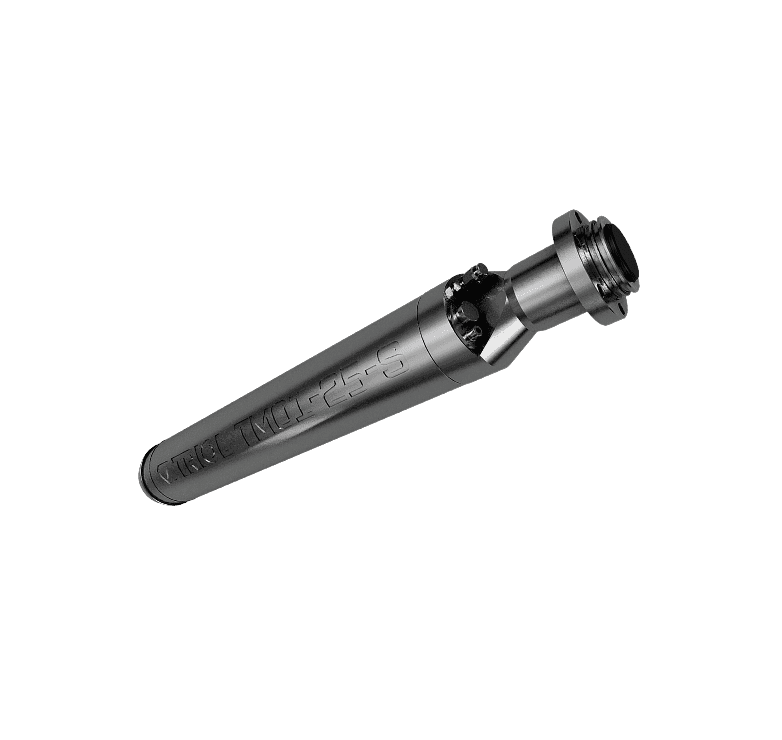

Downhole measuring system TM01

Measure Deeper. Operate Smarter.

Max operating temperature (fluid)

Up to 350°F (177°C) (model TM01-35)

Pressure measurement accuracy

±0.1% full scale.

Pressure range (intake/discharge)

0 - 5800 psi (0 - 40 MPa)

Vibration measurement range

Up to 10 g (98 m/s²) (TM01-25/15) or 5 g (49 m/s²) (TM01-35/30)

Key features: TM01

Discover the engineering advantages that set the TM01 apart - and keep your operations running at peak performance.

High-temperature operation

The TM01 line includes models capable of operating at fluid temperatures up to 350°F (177°C) and processor temperatures up to 410°F (210°C), ensuring reliability in hot wells.

Superior pressure accuracy

The system offers a high pressure measurement accuracy of ±0.1% Full Scale, which allows operators to increase draw-down pressure levels and enhance well productivity.

Automated 12-point calibration

To eliminate human error and guarantee precision, every gauge undergoes a 12-point calibration process using specialized matrix-structured software on automated test benches.

Comprehensive sensor suite

The TM01-35 model is equipped with seven sensors: two pressure sensors, three temperature sensors (intake, motor oil, discharge), and a two-axis vibration sensor.

Universal compatibility

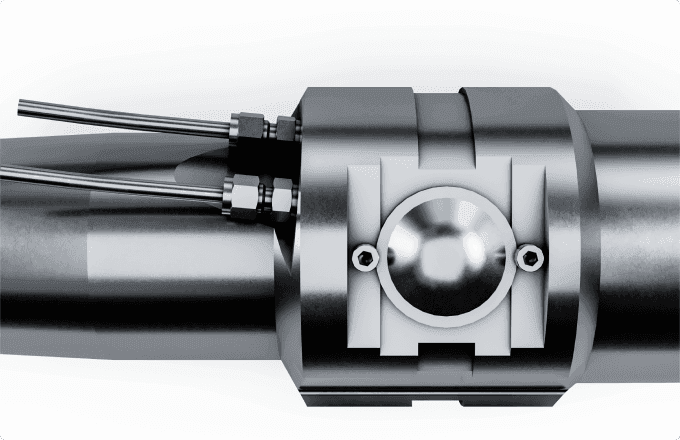

With a diameter of 3.75" (95-96 mm), the units are compatible with 4" and 6" motors and feature various flange adapters to fit different motor configurations.

Advanced connectivity and interface

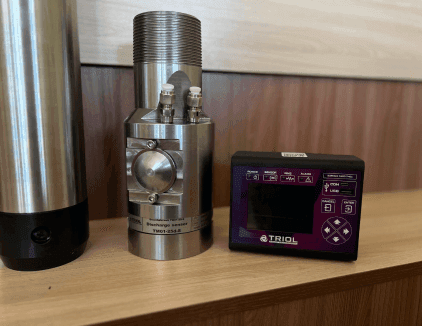

The surface readout units support Wi-Fi connections (up to 20m range) for remote monitoring via mobile devices and feature a 3.5-inch color display for real-time graphing and data logging.

Preventative protection

The system monitors motor oil temperature and leakage currents to promptly take preventive measures against overheating and insulation failure, extending ESP lifespan.

Inside the solution: features that drive your results

Look inside the TM01 to see how smart design becomes real-world performance, efficiency, and uptime.

TM01 is part of Triol’s Monitoring and Telemetry Solutions

Documents

Operation Manual (surface equipment)

PDF

ZIP

Operation Manual (TM01-10,20,30)

PDF

ZIP

Operation Manual (TM01-15,25,35)

Catalog

Characteristics

Outer diameter

3.75 inches (95 mm)

Data update rate

As fast as 5 seconds for intake pressure; 20-30 seconds for all other parameters

Insulation resistance range

10 - 10,000 kΩ

Surface unit display

3.5-inch LCD (320x240 resolution)

Battery life (Test Unit)

Not less than 8 hours in battery mode

Leakage current range

0 - 25 mA

01/01

While others chase scale, we stay focused on what matters most:

your reality, your challenges, your success.

In-house, full-stack control for faster, smarter, tailored solutions

End-to-End Engineering

Lower downtime. Faster optimization. Intelligence that delivers.

Smart Performance

Built for brutal conditions. Trusted in the field.

Proven Where It Matters

We move fast, adapt faster, and build around your reality.

Agile by Design

Contact us

Submit your request or question, and our team of specialists will contact you.

Our sales team will contact you as soon as possible.

Built through partnership. Proven by engineering. Trusted in the toughest conditions. Full-cycle production. Total reliability. Systems that perform where others fall short.

Meet our team

Meet the team behind innovations that drive industries forward. Engineers, designers, and experts turning challenges into solutions.

Triol’s partners

We collaborate with leading Oil & Gas and industrial companies worldwide to deliver efficient, proven solutions tailored to their unique challenges.

Sustainability

Because real sustainability starts at the design table - not at the marketing one - we engineer systems that conserve, protect, and outperform over time.

Technology

Where others deliver equipment, Triol delivers systems. Modular, intelligent, and field-ready. Built for the complexity of modern industry.

Implementations

Global reach, industrial depth: Triol systems implemented across continents and critical sectors.

Redefining What’s Possible and Achieving Results

We are fast where others are slow, flexible where others are rigid, and committed where others are distant.

Discover more

Marine Oil Operations Made Safe and Smart with E-Cabinet NEMA 4X and NEMA 3R

An integrated, corrosion-resistant E-Cabinet solution delivering safe, reliable, low-voltage drive control for onshore and offshore oil operations in harsh marine environments.

Explore more

E-Cabinet

PF01: Power quality that protects equipment and your budget

Harmonics don’t announce themselves. They overheat transformers, trigger false trips, and shorten motor life - all while production keeps running… until it doesn’t.

Explore more

PF01

EP02: Linear ESP Technology Proven in the Sahara Desert

EP02 Linear ESP technology proves reliable and efficient in extreme Sahara Desert oil wells.

Explore more

EP02

Discover more

TM01

Overview
Features
Specification
Photo and video
Downloads

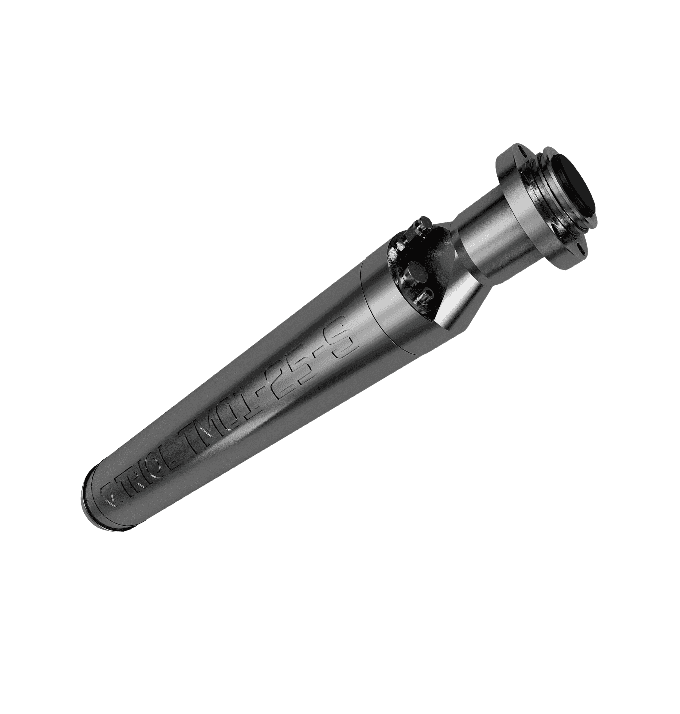

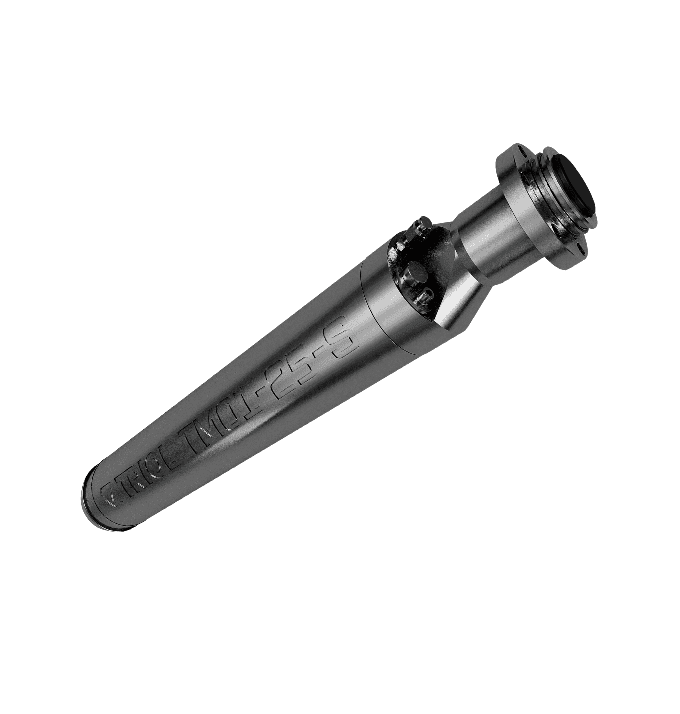

Downhole measuring system TM01
