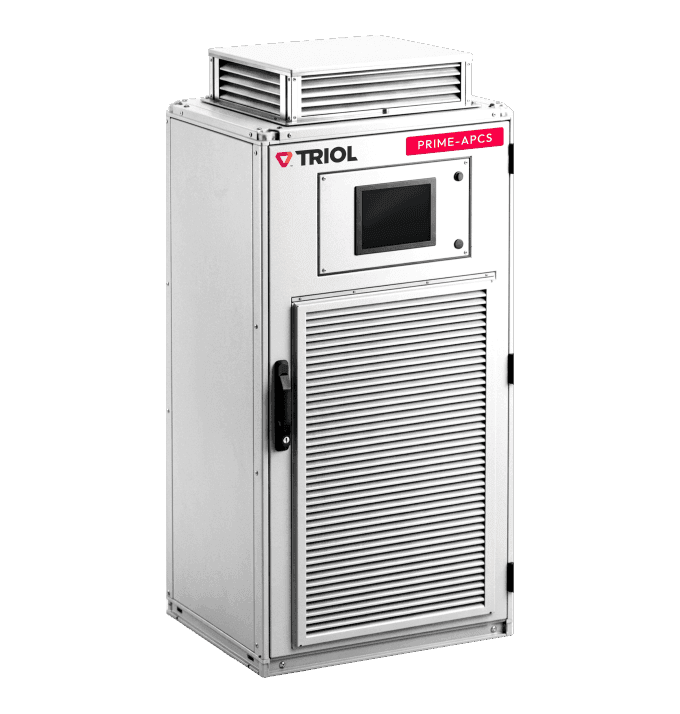

The core of every energy storage system.
Rated power
50 kW to 10 MVA and above
Grid-to-island transfer
≤ 20 ms
Peak efficiency
≥ 99.0%
Battery DC voltage
700–1500 V DC
Discover how one power conversion system keeps your site running, cuts energy costs and grows with your business.
Synchronizes to the grid and delivers active and reactive power setpoints, or creates voltage and frequency itself, with or without a grid.
On grid loss or a voltage dip, switches to grid forming mode within 20 ms and supplies the loads from the battery. Black start re-energizes a dead network.
Ride-through at 0% voltage for 150 ms or more, fault current injection at 150% for 500 ms, synthetic inertia and frequency response.
One 50–250 kW building block runs in parallel with load sharing and fault isolation. With N+1 redundancy, the station keeps running if a module fails.
Compact cabinet, four-cell cabinet, multi-cabinet station: the same parts, controller and software from 50 kW to 10 MVA and above.
Peak efficiency of 99.0% or higher, weighted efficiency of 98.5% or higher and THDi of 3% or less mean more stored energy delivered and a faster payback.
Indoor IP21 / IP54 and outdoor IP55 / IP66 enclosures, corrosion protection up to C5-M, full power from –20 to +50 °C.
your reality, your challenges, your success.
Submit your request or question, and our team of specialists will contact you.
Our sales team will contact you as soon as possible.
Built through partnership. Proven by engineering. Trusted in the toughest conditions. Full-cycle production. Total reliability. Systems that perform where others fall short.
Meet our team
Meet the team behind innovations that drive industries forward. Engineers, designers, and experts turning challenges into solutions.
Triol’s partners
We collaborate with leading Oil & Gas and industrial companies worldwide to deliver efficient, proven solutions tailored to their unique challenges.
Sustainability
Because real sustainability starts at the design table - not at the marketing one - we engineer systems that conserve, protect, and outperform over time.
Technology
Where others deliver equipment, Triol delivers systems. Modular, intelligent, and field-ready. Built for the complexity of modern industry.
Implementations
Global reach, industrial depth: Triol systems implemented across continents and critical sectors.
Station power
500–4600 kVA per station
Nominal AC voltage
400 / 600 / 690 / 800 V, 50 / 60 Hz
Cycle efficiency
≥ 97.0% charge / discharge
Power factor / THDi
Adjustable up to ±0.99 / ≤ 3%
Protection degree
Indoor IP21 / IP54, outdoor IP55 / IP66
Operating temperature
–20…+50 °C full power; –30…+60 °C extended
